Dimensions
-
Item Height
-
180 cm
-
Item Width
-
49.9 cm
-
Item Depth
-
7.8 cm
-
Projection
-
9.4 cm
-
Item Weight
-
42.8 kg
-
Package Height
-
11 cm
-
Package Width
-
56 cm
-
Package Length
-
189 cm
-
Gross Weight
-
42.8 kg
Features
-
Brand
-
Nuie
-
Item Range
-
Revive
-
Item Material
-
Steel
-
Style
-
Contemporary
-
Item Size
-
1800x499mm
-
Item Colour
-
Grey
-
Item Finish
-
Anthracite
-
Panel Type
-
Double
-
Orientation
-
Vertical
-
Tube Shape
-
Oval Panel
-
Tube Size
-
50x25mm
-
Pipe Centres
-
58.9 cm
-
Wall to Pipe Centres
-
5.1 cm
-
BTU Rating
-
4006 BTU
-
Wattage
-
1175 W
-
Operating Pressure
-
6 Bars Max bar
-
Type of Heat
-
Water-based
-
Mounting Type
-
Wall-Mounted
-
Inlet/Outlet Size
-
1/2"
-
Valve Type Compatibility
-
Angled / Straight
-
Flow & Return Pipe Locations
-
Radiator Base
-
Guarantee
-
5 Years
-
Country/Region of Manufacture
-
China
-
Certifications
-
UKCA & CE Certified
Components
-
Items Included
-
Radiator, brackets, screws, plugs, air vents, wall fixings
-
Items Not Included
-
Radiator Valves
Dimensions
-
Item Height
-
180 cm
-
Item Width
-
49.9 cm
-
Item Depth
-
7.8 cm
-
Projection
-
9.4 cm
-
Item Weight
-
42.3 kg
-
Package Height
-
189 cm
-
Package Width
-
56 cm
-
Package Length
-
11 cm
-
Gross Weight
-
42.8 kg
Features
-

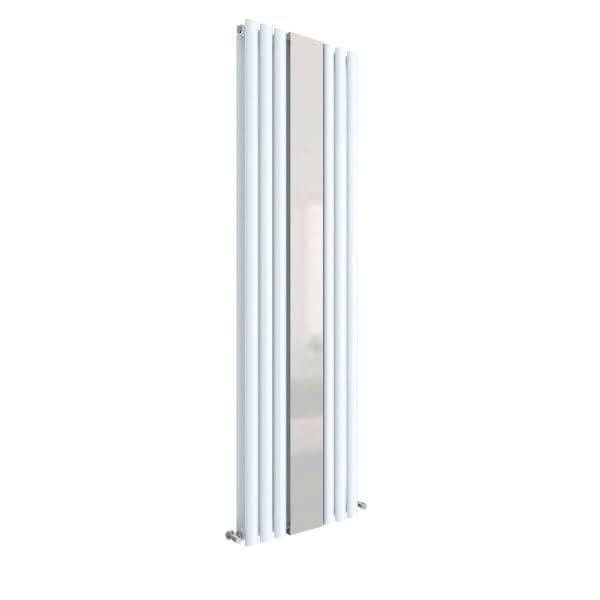

Brand
-
Nuie
-
Item Range
-
Revive
-
Item Material
-
Steel
-
Style
-
Contemporary
-
Item Size
-
1800x499mm
-
Item Colour
-
White
-
Item Finish
-
High Gloss White
-
Panel Type
-
Double
-
Orientation
-
Vertical
-
Tube Shape
-
Oval Panel
-
Tube Size
-
50x25mm
-
Pipe Centres
-
58.9 cm
-
Wall to Pipe Centres
-
5.1 cm
-
BTU Rating
-
4006 BTU
-
Wattage
-
1175 W
-
Operating Pressure
-
6 Bars Max bar
-
Type of Heat
-
Water-based
-
Mounting Type
-
Wall-Mounted
-
Inlet/Outlet Size
-
1/2"
-
Valve Type Compatibility
-
Angled / Straight
-
Flow & Return Pipe Locations
-
Radiator Base
-
Guarantee
-
5 Years
-
Country/Region of Manufacture
-
China
-
Certifications
-
UKCA & CE Certified
Components
-
Items Included
-
Radiator, brackets, screws, plugs, air vents, wall fixings
-
Items Not Included
-
Radiator Valves
